SimpleMill - A Mach3 Screen Set
For 3 or 4 Axis CNC Milling

Now Contains All The Z and XY Setting Buttons
They are not shown in the screens below.

SimpleMill is a very easy to use two page Screen Set for Mach3.

I am involved making Experimental Airplane parts from aluminum sheet stock no thicker than .25 inches.  SimpleMill has everything that I need to run my CNC Mill and I don't have to look at a lot of extra buttons and screens that I really have no real use for.  SimpleMill is not for everyone who uses Mach3.  Three or four axis are supported and this may be exactly what you have been looking for in a "SimpleMill" screen set.

I think you will find the Auto Z Zero routine is really a nice addition. It automatically does both Imperial and Metric Auto Zero.  It really performs very well.  Has been fully tested in Lockdown Version of Mach3.  I do not recommend running any Development Version of Mach3 in a production enviroment.

Below are pictures of the program screens and some pictures of my setup milling an aircraft part.  Click on the download link to get a copy of simple mill.  Un ZIP the file and simply copy the SimpleMill folder to your Mach3 bitmap directory and copy SimpleMill 3A.set or SimpleMill 4A.set to your Mach3 directory.  Select View from the Mach3 menu and click on SimpleMill 3A.set or SimpleMill 4A.set to load either screen set.

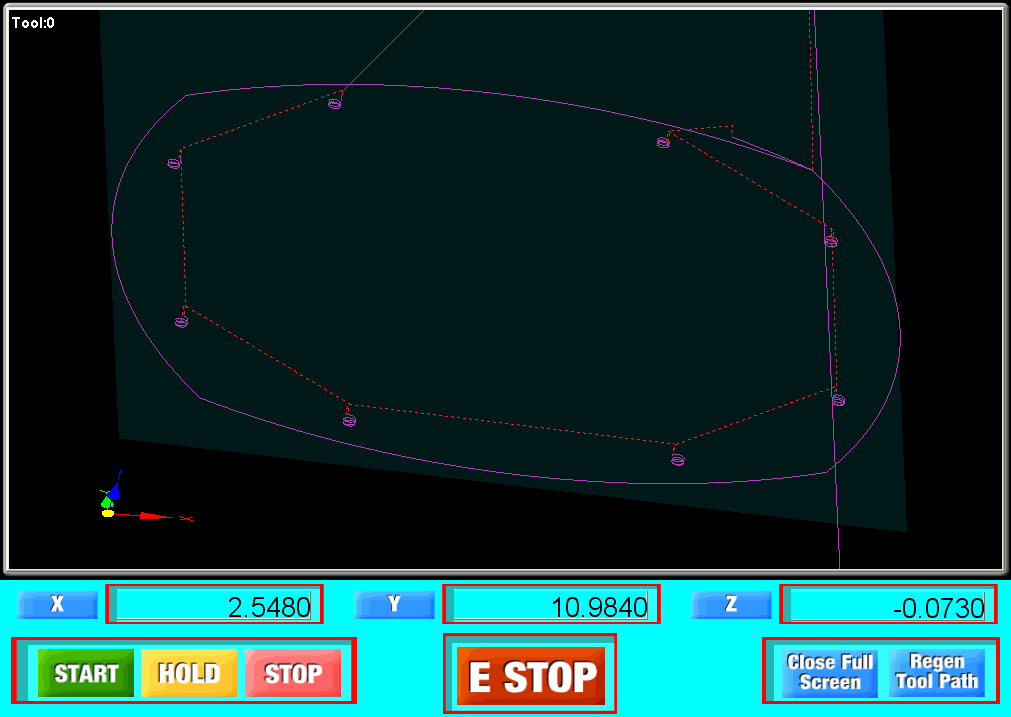

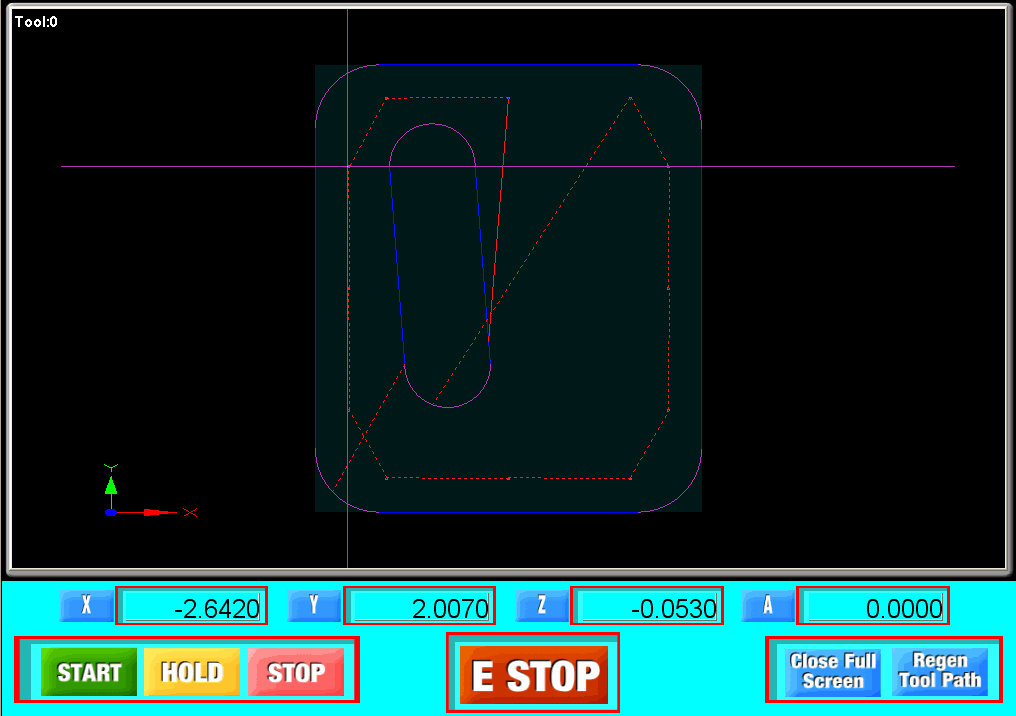

I really enjoy work with the full screen view, it gives a great view of what the mill is doing!

Hope you enjoy it as much as I have building and using it for my CNC milling.

 CLICK ON THE 4 SCREEN SHOTS BELOW TO SEE IN 1024 FULL SCREEN SIZE





CLICK HERE To Download The SimpleMill Zip File
